TSR Electric Series

Sullair TSR Series Air Compressors are designed for the rental industry with energy savings and features built-in to the Sullair TSR Electric rental packages


Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
TSR Electric Series


Cubic Feet Per Minute
380-1600 cfm


Pound Per Square Inch
100-175 psi

  • Available models:
    • TSR-20—380 to 970 acfm (10.8 to 27.5 m3/min, 179 to 458 L/s), 100 to 175 psig (6.9 to 12.1 bar)

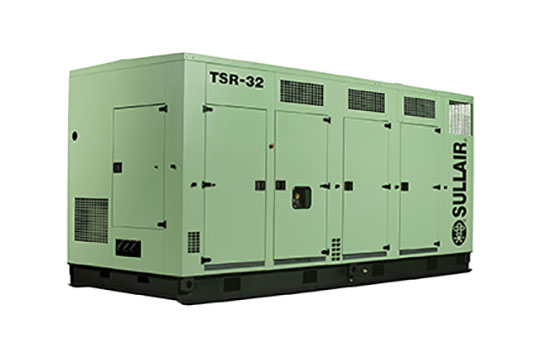

    • TSR-32—784 to 1600 acfm (22.2 to 45.3 m3/min, 370 to 755 L/s), 100 to 175 psig (6.9 to 12.1 bar)

      Operating temperature range of 20°F to 120°F (-6.6°C to 48.9°C)


  • Self-contained package
  • Cold weather protection
  • Suited for use outdoors
  • Sullair’s spiral valve
  • Premium efficiency TEFC flanged motor
  • Supervisor™ Microprocessor Controller
  • Oil field skid
  • Fork lift pockets
  • Heavy-duty sound-attenuated enclosure
  • Easy-access doors
  • Heavy-duty air inlet filter
  • Air-cooled or water-cooled packages (water-cooled available on TSR-32 only)
  • Variable speed drive or fixed speed drive (fixed-speed drive available on TSR-32 only)
  • Built-in circuit breaker
  • Fully automated controls
  • Cam lock connections
  • Multi-stage air/fluid separation
  • Low fluid carry-over—1 ppm maximum
  • Spin-on fiberglass fluid filter
  • Helical design drive gears (TSR-20 only)
  • Bearing fluid reservoirs (TSR-20 only)
  • Spill-proof base plate (TSR-32 only)
  • RS232 and RS485 ports for communications and remote monitoring (TSR-32 only)
  • HERESITE® coated coolers

    Biodegradable Sullube® fluid

    Fluid containment pan

Optional inline filters available to meet various air quality requirements (TSR-32 only)


Products and Features may vary, please contact your local distributor for more information about what is available in your region.
