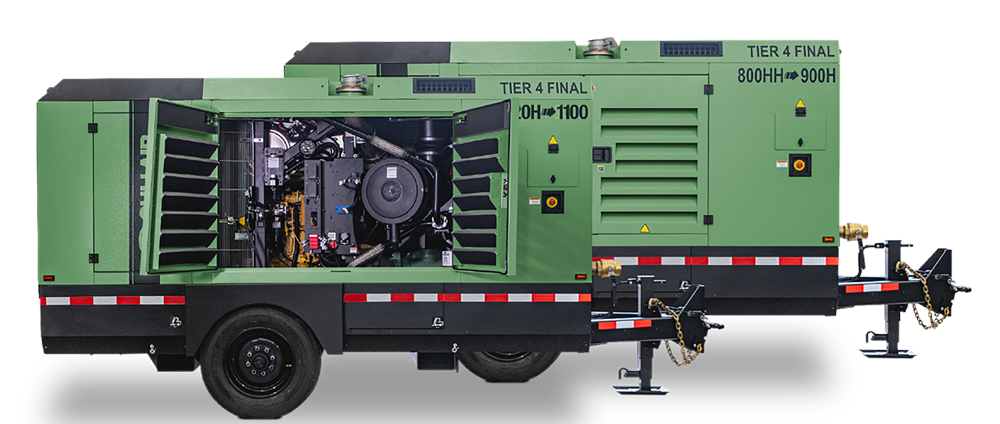

Sullair Mid-Range Series Tier 4 Final Portable Lubricated Rotary Screw Air Compressors

COVERS THE JOBS OF UP TO 9 COMPRESSORS
THE ULTIMATE IN VERSAILITY, EFFICENCY AND DURABILITY

Built to take on any job with a wide range of pressure and flow options, the Sullair Mid-Range Series is engineered to be one of the most versatile and efficient portable compressors on the market.

  • Engineered for Efficiency
    • Sullair 23-Series is one of the most efficient air ends we've ever made
    • Electronic Spiral Valve Technology helps maximize fuel efficiency and extend run times
  • Designed for Ease of Use
    • Nearly infinite combinations of pressure and flow options which can be changed quickly and easily
    • State-of-the-art 7˝ Color Sullair Touch Screen (STS) Controller allows easy control at the touch of a finger — even with gloves on!
  • Choice of Proven Tier 4 Final Engines
    • Caterpillar 7.1L Diesel
    • Perkins 1206J Diesel
  • All in a Compact and Durable Package

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
Mid-Range Compressor Series

Flow

800 - 1100 cfm
22.7 - 33.1 m³/min

Pressure

100 - 200 psi
7 - 13.8 bar

Power

302 hp
225 kW

Engineered for Efficiency

  • Sullair 23-Series Variable Capacity Air End
    • Designed with internal fluid porting to help minimize leaks
    • Engineered with fewer parts to help decrease part wear
  • Sullair Electronic Spiral Valve Technology
    • Helps maximize fuel efficiency and extend run times by matching air supply to demand

Designed for Ease of Use

  • Nearly infinite combinations of pressure and flow options which can be changed quickly and easily
  • State-of-the-art 7˝ Color Sullair Touch Screen (STS) Controller allows easy control at the touch of a finger — even with gloves on!
    • Easy-to-set pressure and flow screens
    • Controls Electronic Spiral Valve
    • In-depth compressor and engine performance information

Compact and Durable Package

  • Galvannealed sheet metal canopy with upgraded paint helps improve corrosion resistance to stand up to harsh environments
  • Highway towable running gear
  • Multiple service doors with robust push to close latches
    • Easy serviceability and maintenance
    • Helps prevent unintended door closure — helping increase worker safety
  • Strong fork pockets
  • Single-point lift bail
  • IP-65-rated electrical enclosures for harsh environments and easy cleaning

Multiple Tier 4 Final Engine Options

  • Caterpillar 7.1L Diesel or Perkins 1206J Diesel
    • Small package size and advanced fuel system help improve fuel efficiency
    • Clean engine module for reduced noise
    • Long service intervals—500 hours



Customize Your Compressor

  • DLQ — Less running gear
  • Aftercooled & filtered with integrated condensate management system
  • Refinery package
  • Cold weather package
  • Telematics
  • AirLinx®
  • LoJack® Anti-Theft Recovery Device
  • Solar battery charger
AirLinx is a registered trademark of Sullair, LLC. LoJack is a registered trademark of CalAmp and its subsidiaries in the United States.

800HH-900H

  • Actual Delivery cfm (m³/min): 800/900 (22.7/25.5)
  • Rated Pressure psig (bar): 200/150 (13.8/10.3)
  • Pressure Range, max/min psig (bar): 200/80 (13.8/5.5)
  • Fuel Consumption at Full Load gph (l/h)
    • 800 cfm at 200 psi (22.7 m³/min at 13.8 bar): 13.2 (50)
    • 900 cfm at 150 psi (25.5 m³/min at 10.3 bar): 12.5 (47.3)

920H-1100

  • Actual Delivery cfm (m³/min): 920/1100 (26.1/31.1)
  • Rated Pressure psig (bar): 150/100 (10.3/7)
  • Pressure Range, max/min psig (bar): 150/80 (10.3/5.5)
  • Fuel Consumption at Full Load gph (l/h)
    • 920 cfm at 150 psi (26.1 m³/min at 10.3 bar): 12.2 (46.2)
    • 1100 cfm at 100 psi (31.1 m³/min at 7 bar): 12.8 (48.5)

Performance

  • Service Valves, main/auxiliary: 1 (3" NPT) / 1 (.75" NPT)
  • Compressor Fluid Type: AWF®
  • Compressor Discharge Shutdown Temp ºF(ºC): 250 (121)
  • Compressor Fluid Capacity gal (l): 21 (79)
  • Maximum Operating Altitude ft (m): 12,000 (3658)
  • Maximum Operating Tilt:15º
  • Sound Level (U.S. EPA) dbA: 76
  • Ambient Temperature Rating°F(ºC): -20 to 125 (-29 to 52)

Engines

  • Available Makes & Models (Emissions Level): Caterpillar 7.1L Diesel & Perkins 1206J Diesel (T4F/StageV)
  • Displacement in³ (l): 433 (7.1)
  • Cylinders: 6
  • Bore x Stroke in (mm): 4.13 x 5.31 (105 x 135)
  • Operating Speed rpm: 2100
  • Minimum Idle Speed rpm: 1200
  • Available Power bhp (kW): 302 (225)
  • Radiator System Capacity gal (l): 17.2 (65)
  • Engine Water Shutdown Temp. °F (°C): 226 (108)
  • Engine Oil Capacity qts (l): 4.5 (17)
  • Fuel Tank Capacity gal (l): 145 (549)
  • Electrical System voltage: 24
  • Battery Rating - CCA: (4D) 1000
  • DEF Consumption % of Fuel: 4%
  • DEF Capacity gal (l): 13.8 (52.2)

Weights & Dimensions

DPQ - Includes Running Gear

  • Working weight lbs (kg): 11,750 (5330)
  • Dry weight lbs (kg): 10,470 (4749)
  • Length in (mm): 192 (4868)
  • Width in (mm): 91 (2312)
  • Height in (mm): 88 (2235)
  • Track Width in (mm): 81.5 (2071)
  • Max Towing Speed mph (km/h): 65 (104)
  • Axle Rating lbs (kg): 12,000 (5443)
  • Tire Size: 245/70R 17.5
  • Tire pressure psig (bar): 125 (8.6)
  • Wheel Size: 17.5
  • Lug Nut Torque lb-ft (Nm): 300 (407)

DLQ - Less Running Gear

  • Working weight lbs (kg):10,810 (4903)
  • Dry weight lbs (kg): 9530 (4323)
  • Length in (mm): 158 (4017)
  • Width in (mm): 86 (2182)
  • Height in (mm): 77 (1951)
