Sullair Desiccant Compressed Air Dryers

CLEAN, DRY COMPRESSED AIR IS ESSENTIAL

Sullair Desiccant Compressed Air Dryers are engineered for the most critical applications — providing dry compressed air where you need it most.

Compressed air contamination such as water, dust, bacteria, microorganisms and industrial acids can ruin product and foul processes. Removing it is essential to help protect your downstream equipment and reduce maintenance cost and downtime.

  • Ideal for applications requiring extremely low dew point
    • -40°F/-40°C (-100°F/-73°C optional)

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us

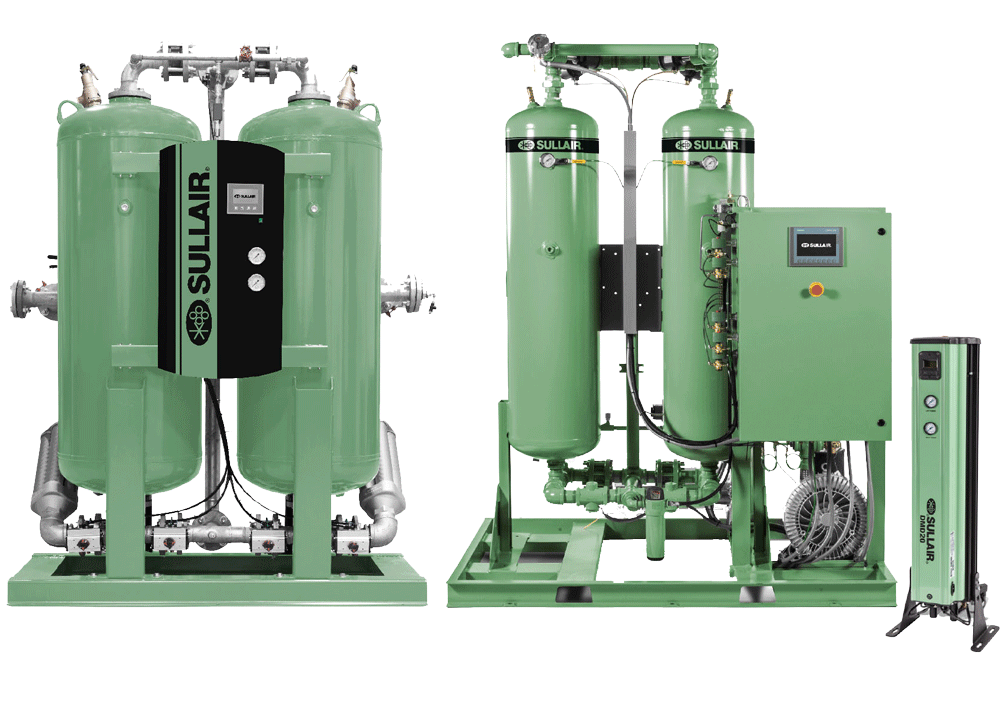

Desiccant Collage
CFM
CFM

Flow

3 - 10,000 cfm
m³/min
Pressure
Pressure

Pressure

50 - 232 psi
bar

DBP Series
Desiccant Heated Blower Purge Regenerative Dryers

  • 7˝ DTS Controller for reliable control at your fingertips
    • Purge flow indicator
    • Dew point monitoring
    • Adjustable cycle time
      • 10–15 minutes
    • Optional demand cycle control
  • -40°F/-40°C dew point performance
  • Engineered to stand up to harsh environments
    • High performance butterfly valves help reduce seal wear and leakage

DEX Series
Desiccant Externally Heated Regenerative Dryers

  • 7˝ DTS Controller for reliable control at your fingertips
    • Purge flow indicator
    • Dew point monitoring
    • Adjustable cycle time
      • 10–15 minutes
    • Optional demand cycle control
  • -40°F/-40°C dew point performance
  • Engineered to stand up to harsh environments
    • High performance butterfly valves help reduce seal wear and leakage

DP Series
Premium Desiccant Heatless Regenerative Dryers

  • 3.8˝ DTS Controller for maximum efficiency
    • Condition monitoring for ease of operation
    • Energy Management System
    • Humidity sensor helps reduce purge air and energy consumption
    • Optional dew point sensor
  • -40°F/-40°C dew point performance
    • Optional -100°F/-73°C
  • Built for simplified maintenance and service with open frame design and histogram
  • Engineered to stand up to harsh environments
  • High performance angle body valves with PTFE seals help reduce air leakage
    • Reduced maintenance costs with service kits
  • Minimized noise via exhaust valve speed control

D Series
Desiccant Heatless Regenerative Dryers

  • LED Desiccant Controller (DC) with dryer schematic
  • -40°F/-40°C dew point performance
    • Optional -100°F/-73°C
  • Built for simplified maintenance and service
  • High performance angle body valves with PTFE seals help reduce air leakage
    • Reduced maintenance costs with service kits
  • Minimized noise via exhaust valve speed control

DMD Series
Desiccant Modular Regenerative Dryers

  • Compact design
  • Inlet and purge manifold design for low pressure drop
  • Mini PLC monitor
  • Completely automatic
  • Point-of-use placement



DBP Series & DEX Series

  • Demand cycle control
  • Pre-piped filter
  • Low bed temperature shut off with light and contact
  • High heater remote temperature alarm
  • NEMA 4, 4x enclosures
  • Visual moisture indicator
  • 3-valve and 9-valve bypass options
  • Optional voltage
  • Failure to switch pressure alarm
  • Outlet pressure dew point -4°F (-20°C)
  • Purge flow meter
  • Dew point monitoring system
  • Low ambient package
  • Microprocessor based controls/Modbus
  • Subzero ambient package
  • Allen-Bradley PLC with color touch screen monitor

DP Series

  • Dew point monitor display
  • Failure to switch pressure alarm
  • Delta pressure filter alarm with gauge
  • Webpage with data log
  • Pneumatic controls
  • Pre-piped filter

D Series

  • Pre-piped filter

DMD Series

  • Pre- and after-filter (shipped loose)
  • Mounted filters with 3-valve bypass
  • Visual moisture indicator
  • Energy efficient demand cycle control with dew point monitor
  • Dew point monitor
  • -4°F (-20°C) or -100°F (-73°C) pressure dew point

DBP Series

  • Flow Rates scfm: 500 - 10,000
  • Standard Outlet Pressure Dew Point °F: -40
  • Pre- and post-filtration required
    • Required pre-filtration grade μm: .01
    • Required post-filtration grade μm: 1
  • Max Inlet Air Temperature °F: 120
  • Min/Max Operating Pressure psig: 50/150
  • Average Purge Air: 3%

DEX Series

  • Flow Rates scfm: 200 - 3500
  • Standard Outlet Pressure Dew Point °F: -40
  • Pre- and post-filtration required
    • Required pre-filtration grade μm: .01
    • Required post-filtration grade μm: 1
  • Max Inlet Air Temperature °F: 120
  • Min/Max Operating Pressure psig: 50/150
  • Average Purge Air: 7%

DP Series

  • Flow Rates scfm: 80 - 2800
  • Standard Outlet Pressure Dew Point °F: -40
  • Optional Outlet Pressure Dew Point °F: -100
  • Pre- and post-filtration required
    • Required pre-filtration grade μm: .01
    • Required post-filtration grade μm: 1
  • Min/Max Inlet Air Temperature °F: 40/120
  • Min/Max Operating Pressure psig: 60/150
  • Average Purge Air: 15%

D Series

  • Flow Rates scfm: 80 - 800
  • Standard Outlet Pressure Dew Point °F: -40
  • Optional Outlet Pressure Dew Point °F: -100
  • Pre- and post-filtration required
    • Required pre-filtration grade μm: .01
    • Required post-filtration grade μm: 1
  • Min/Max Inlet Air Temperature °F: 40/120
  • Min/Max Operating Pressure psig: 60/150
  • Average Purge Air: 15%

DMD Series

  • Flow Rates scfm: 3 - 240
  • Standard Outlet Pressure Dew Point °F: -40
  • Pre- and post-filtration required
    • Required pre-filtration grade μm: .01
    • Required post-filtration grade μm: 1
  • Max Inlet Air Temperature °F: 122
  • Min/Max Operating Pressure psig: 58/232
  • Average Purge Air: 15
