FW Series Flange Filters

Sullair filters protect your plant equipment and processes, improve your product quality and reduce your energy costs. When larger flange style filters are required, Sullair offers a family of superior FW Series flange port filtration products. FW Series filters have an application range from general purpose to the most stringent food and pharmaceutical applications.

  • Certifications: ISO 8573-1, ASME, CRN

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us

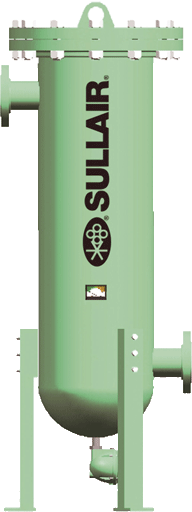

Sullair FW Series flange filters
CFM
CFM

Flow

1500 – 12,400 cfm
m³/min
Pressure
Pressure

Pressure

maximum operating pressure
200 psi
bar

m³/min

42.5 – 501.2 m³/min

bar

maximum operating pressure
13.8 bar

  • 1 to .01 micron filtration available
  • 1500 to 17,700 scfm (42.5 to 501.2 m³/min)
  • Maximum operating temperature: 176°F (80°C)
  • Minimum operating temperature: 36°F (2°C)
  • Maximum operating pressure: 200 psig (13.8 bar)
  • External float drain standard
  • Differential pressure gauge

  • 7 Element types
  • Superior construction
  • Efficient drainage layer
  • Hydrophobic micro fiber
  • Deep pleats
  • Stainless steel cores
  • Special disruptive pattern
  • PVC impregnated layer
  • End cap key fit

  • Zero loss drains
