ELM Series Mist Eliminators

The time-tested range of Sullair Mist Eliminators combine extensive research and development with decades of experience in compressed air treatment.

Sullair now offers the ideal solution to ever increasing demands from the industry for clean, high quality compressed air, efficient removal of oil-mist carryover from piston or oil flooded rotary compressors.

Compressed air processing equipment must have a very low pressure drop, long service life, and be strong enough to withstand the harshest operating conditions. Protection from slugs of oil or compressor air/oil separator failure is essential.

The range of Mist Eliminators is specifically designed to meet these demands and will optimize oil removal while ensuring extremely low pressure drop and long service life.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us

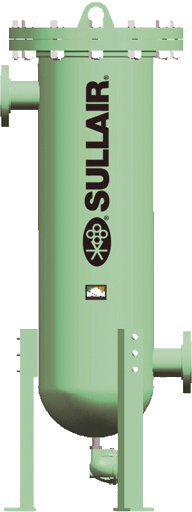

Sullair Mist Eliminator
CFM
CFM

Flow

150 – 12,000 cfm
m³/min
Pressure
Pressure

Pressure

maximum operating pressure
200 psi
bar

m³/min

4.2 – 339.8 m³/min

bar

maximum operating pressure
14 bar

  • Removal of particles down to 1 micron including coalesced liquid water and oil providing a maximum remaining oil aerosol content of 0.5 ppm
  • 150 to 12,000 scfm (4.2 to 339.8 m³/min)
  • Maximum operating pressure: 200 psig (14 bar)
  • Minimum operating temperature: 36°F (2°C)
  • Maximum operating temperature: 176°F (80°C)
  • External float drain
  • Differential pressure gauge

  • Ultra low .05 psi differential
  • High load factor compared to conventional hand packed media which is prone to poor performance under varying load conditions
    • Provides 9–10 times greater filtration surface area, greater dirt holding capability and lower pressure drop
    • Eliminates migration of airflow to area of least resistance, also known as “channeling”
    • Eliminates the shedding of media
    • Consistent quality
  • Strong stainless steel support sleeve construction
    • Eliminates rust and corrosion which can contaminate the air system
    • Integral support of the filtration media to eliminate bypass of contaminants
  • Special machine pleated element construction
    • The machined pleating of the filter media increases its stability under changing loads and reduces the specific surface tension.

  • Zero loss drain
  • Ball valve and strainer
