NEXT GENERATION OF PORTABLE PERFORMANCE
The workhorse of our elite mobile fleet, the Sullair 185 is fully optimized and ready to hit the road.
- Improved Sullair 14-Series Air End
- Compact Design
- Easy service and maintenance
Search by Product Title, or Category

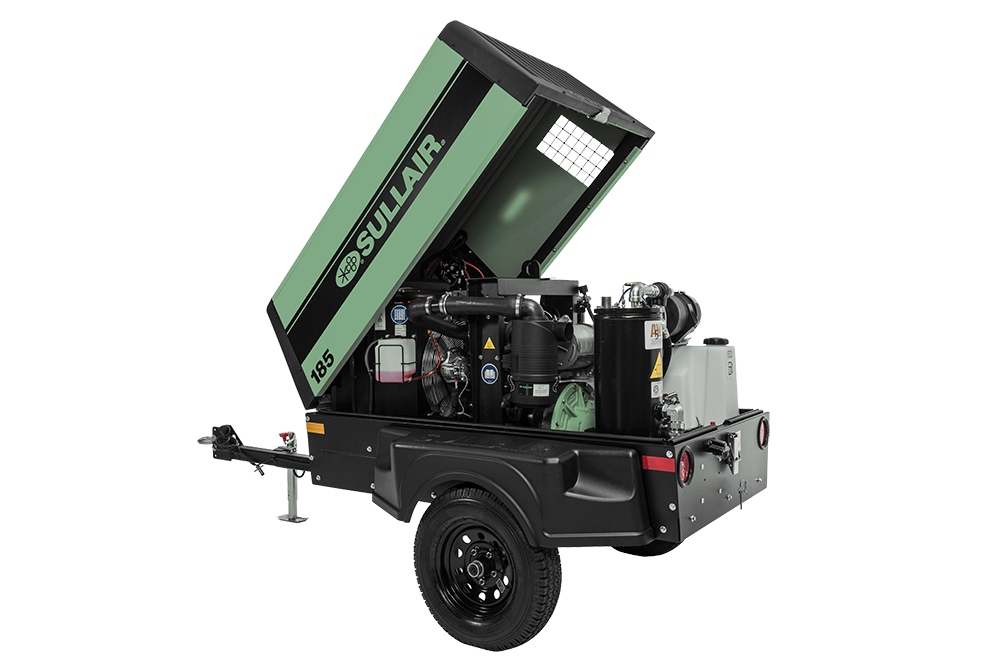

185 Tier 4 Final Portable Air Compressor
Flow
185
cfm
5
m³/min
Pressure
100
psi
7
bar
Power
49
hp
36.5
kw
- Improved Sullair 14-series air end, continuing the tradition of reliable durability
- Integrated leak-free design
- Direct drive
- Proven Kubota engine
- Tier 4 final emissions compliant
- Turbo-charged to handle high altitudes
- Improved fuel efficiency with a 27-gallon fuel tank — up to 10 hours of use
- Compact design for improved maneuverability
- Easy service and maintenance
- Improved access to engine air filter and oil dipstick
- Consolidated fuse/relay box in one location
- AWF® all-weather lubricant standard fill — helps keep your compressor running in extreme conditions
- DLQ— Less Running Gear
- Single Hose Reel
- Double Hose Reel
General
Actual Delivery cfm (m³/min): 185 (5.2)
Rated Pressure psig (bar): 100 (7)
Pressure Range min/max (bar): 80 (5.5) / 125 (18.6)
Engine
Make & Model: KUB1803 (T4F)
Operating Speed rpm: 2720
Available Power bhp (kW): 49 (36.5)
Displacement in³/cm³: 111 (1826)
Cooling System Capacity gal (l): 2.75 (10.4)
Engine Oil Capacity qts (l): 7.3 (6.9)
Fuel Tank Capacity gal (l): 27 (102.195)
Electrical System Voltage: 12
Battery Rating CCA: 1000
Compressor
Service Valves No. & (Size): 2 (2 ¾ ")
Compressor Oil Capacity gal (l): 2.1 (7.9)
DPQ Package — Includes Running Gear
Working weight lbs (kg): 2175 (987)
Dry weight lbs (kg): 1960 (889)
Length in (mm): 130.8 (3322)
Width in (mm):59.2 (1504)
Height in (mm): 58 (1473)
Track Width in (mm): 50.9 (1293)
Max Towing Speed mph (km/h): 55 (89)
Axle Rating lbs (kg): 3700 (1678)
Tire Size: 175/80D13
DLQ Package — Less Running Gear
Working weight lbs (kg): 1950 (845)
Dry weight lbs (kg): 1740 (789)
Length in (mm): 79.3 (2014)
Width in (mm): 40.7 (1034)
Height in (mm): 47.8 (1214)
Performance
Fuel Consumption 100% Load gph (l/h): 2.7 (10.2)
Max Operating Altitude ft (m): 9000 (2743)
